Question from user gaislander at hvacadvice at reddit.com.

Answer:

This is right after my master bedroom, which is always hotter than the rest of the house with AC, and colder with heat. Four go to the master bathroom and two to the living room on the other side of the wall (facing left).

New home. They have come out several times and last time came out and updated the two master bedroom branch ducts (the two before this picture) from 6 to 7 which helped a bit, but not fully.

This is too many branches and too close to the end right? Will moving the living room ones to the main line further back help?

Im pretty sure this should have been a 3.5 ton or 4 ton vs a 3 ton, but its pretty close so trying to get it work as best as possible. TIA.

Answer from user gaislander at hvacadvice at reddit.com.

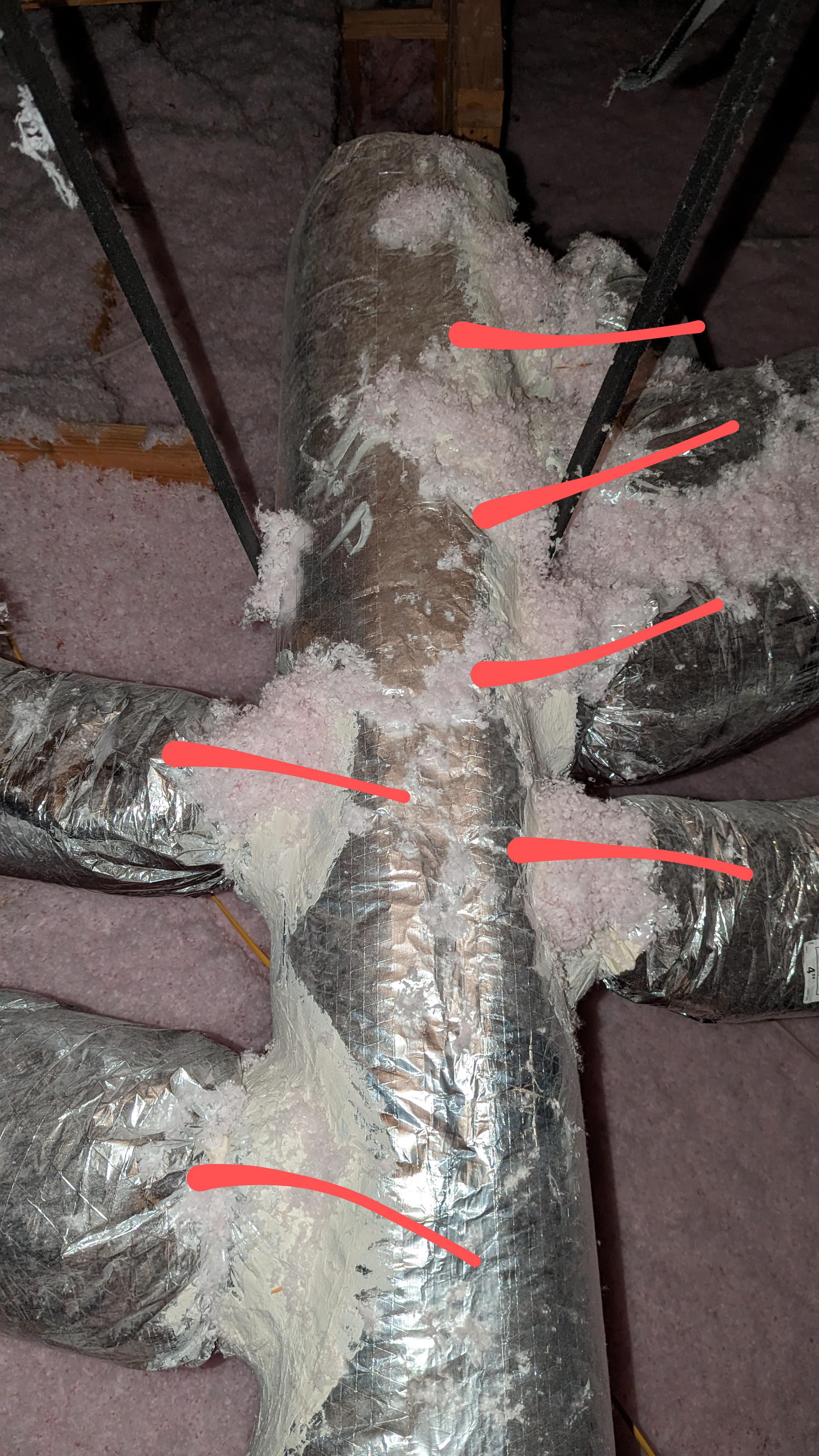

6 branch ducts within 4 of end of main duct
